- Briquettes Diameter : 70mm
- Briquettes Length : 100mm
- Production Capacity: 1000 Kg/hr.
- Raw-material size: 10mm Maximum
- Moisture content of Raw Material: Max. 10%
- Finished Product Shape: Cylindrical
- Process Cost/MT [Approx) : Rs: 550/- [In India]
Specifications of applicable Raw Material
- Size of Raw Material : 10mm
If bigger size of Raw Material, Hammer Mill required.
- Moisture contain : Max. 10 %.
If Moisture contain is higher than Dryer is required.
Land Area in Feet(Machine Room) : 20 X 30' X 12' (Width X Length X Height) Electricity/Power
- Required Power Connection: 50 hp(III phase).
- Practical used Amp. Load: 60-70. Amp(Approx)
- Power Consumption: 25-35 Unit/Tone.
Labor
- Trained & Skilled operator: One/Shift
- Unskilled labor: Six/shift
Production Data with Various Raw Materials (Approx)
- Sugarcane Baggasse: 400-500 Kg./hr.
- Groundnut shell: 800-900 Kg./hr.
- Saw Dust/Wood Chips/coconut Shell: 900-1000 Kg./hr.

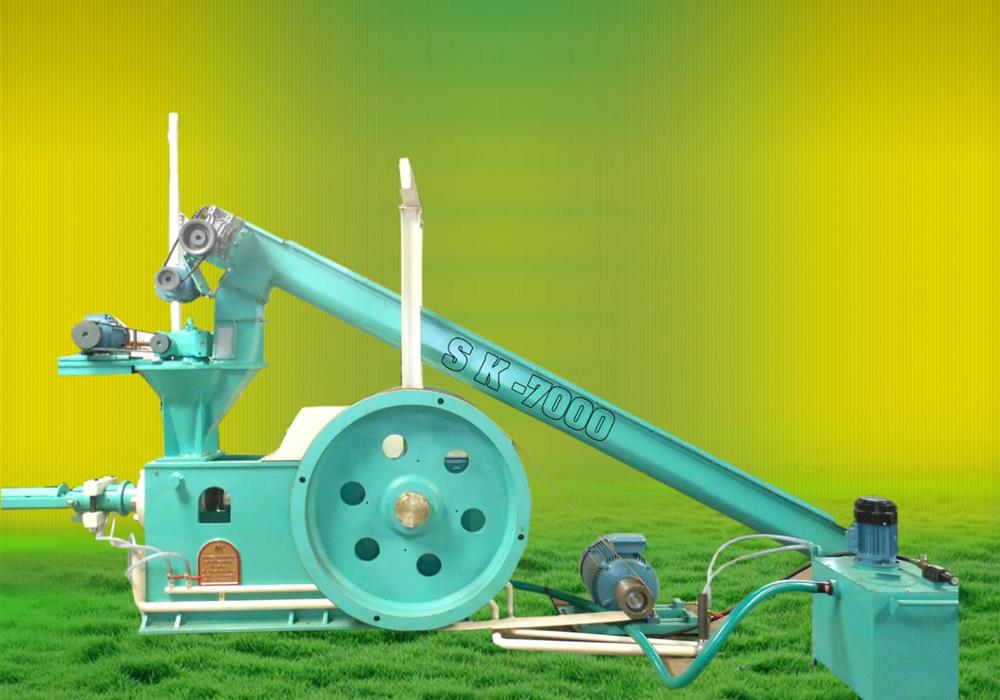

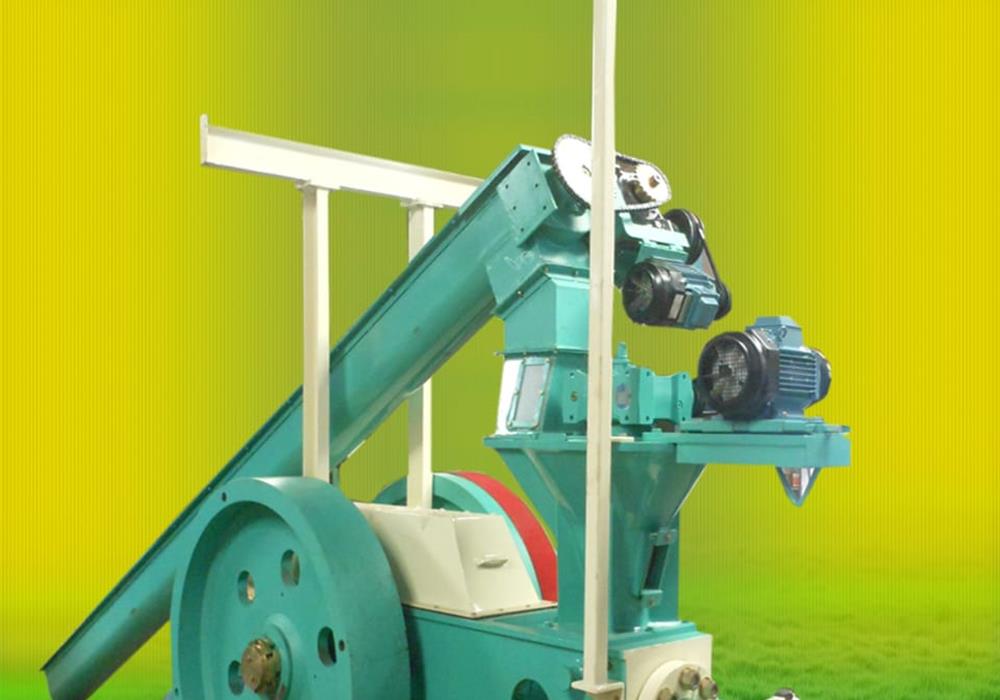

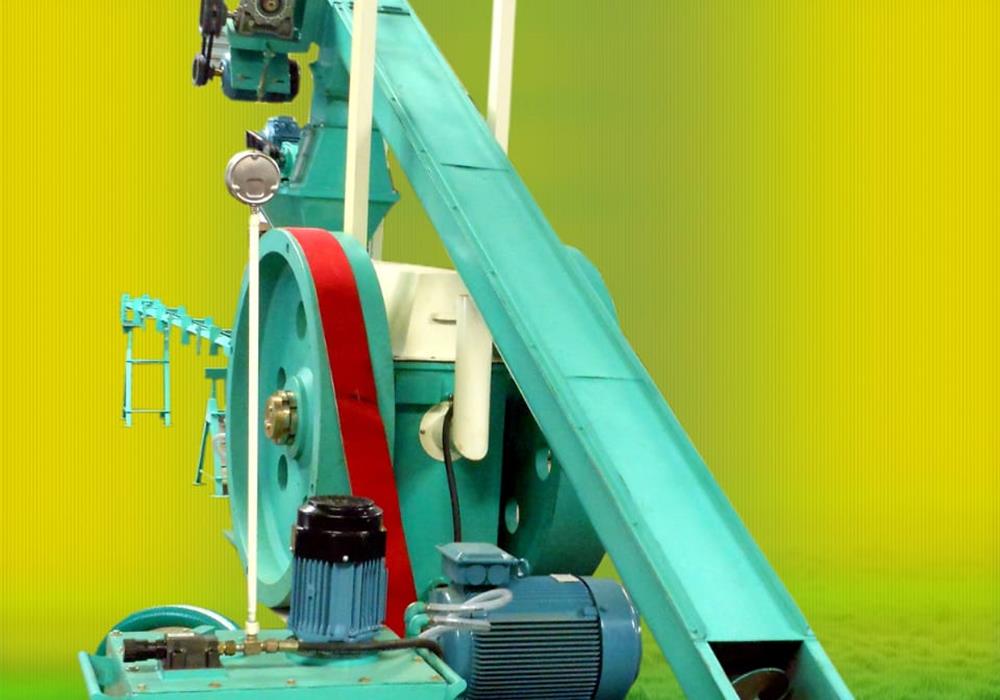

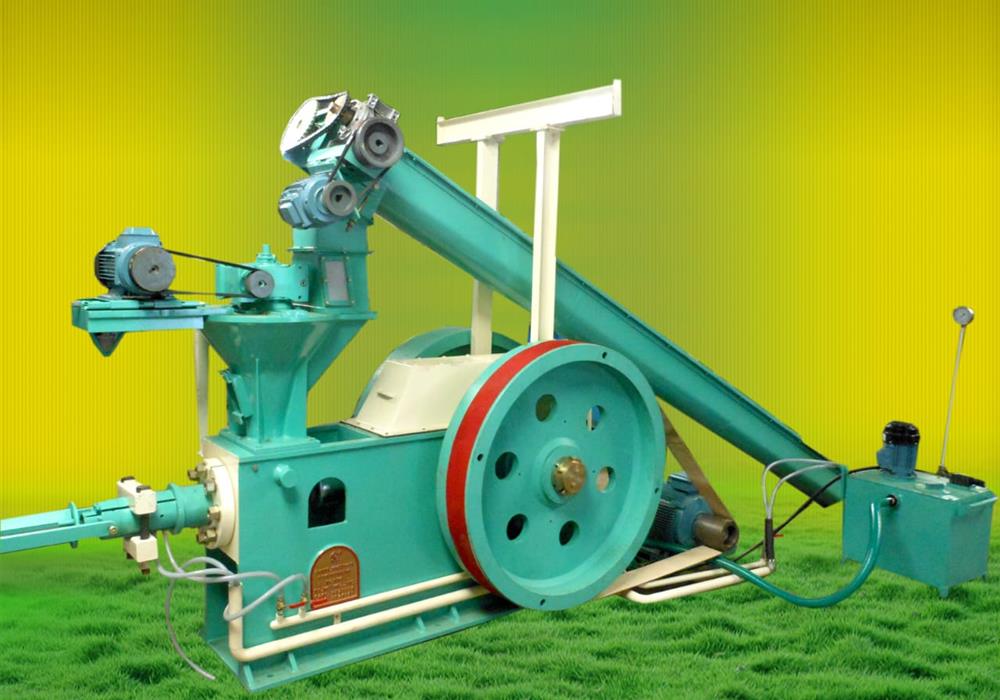

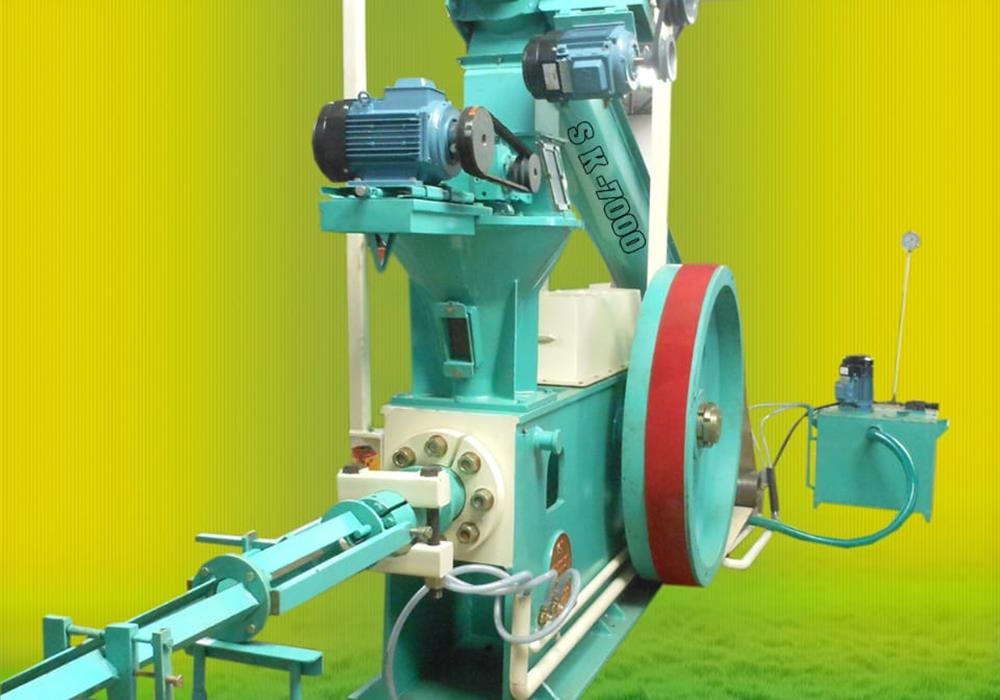

Unit Consisting:
- Bio-mass Briquetting press with
- 40 HP Electric Motor with nylon belt
- Complete lubrication system with Filter & 2 HP Electric Motor.
- Feeding cyclone, Gearbox, 3 HP Electric motor
- Screw Conveyor-15 feet long with Gearbox 2 HP Motor
- Cooling lines 30 feet with stand.
- Complete operating panel board.
- Foundation channel for main Motor.
- Foundation bolts.
All above Elec. Motors with 1440 RPM operating AC Power supply shall be 415V, 3Phase, 50Hz.
