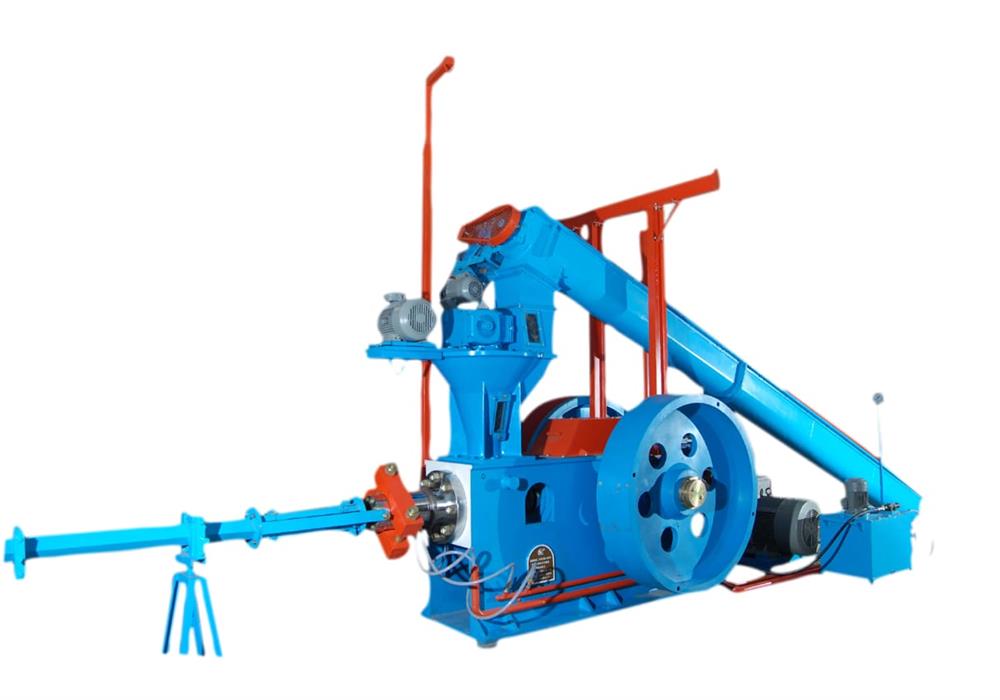

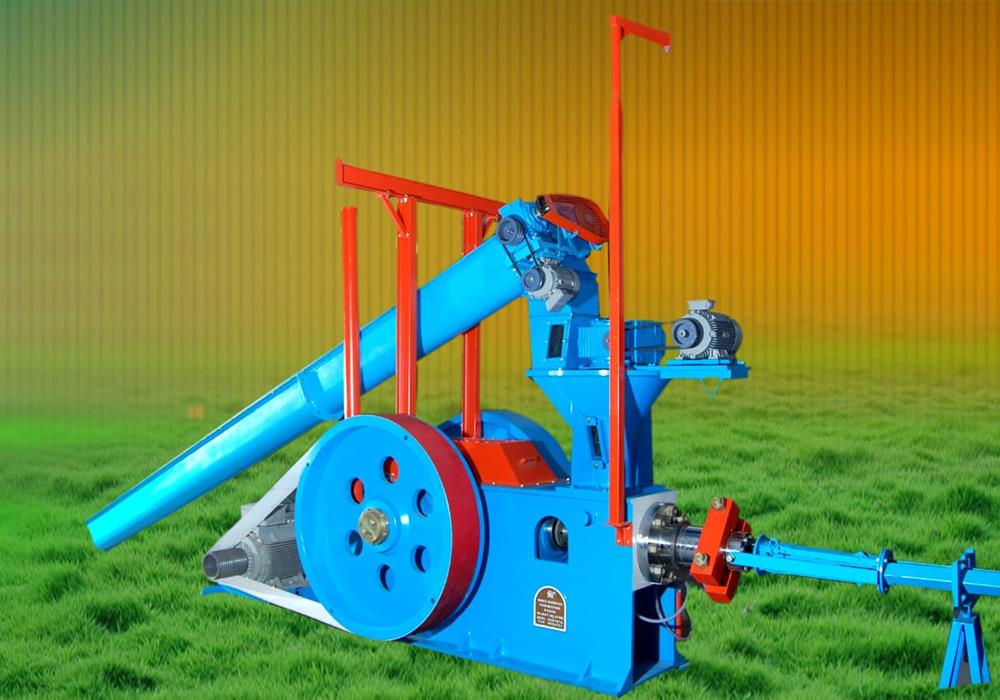

The flagship product of Shree Khodiyar Engineering Co. is SK-9000 Model. It has jumbo production Capacity with minimum operating cost compare to other models. Some latest modifications introduce sensor technology make economical and most effective model.
- Briquettes Diameter: 90 mm
- Briquettes Length: 100mm-500mm
- Production Capacity: 1500 Kg/hr.*
- Raw-material size: Max. 20 mm
- Moisture content of Raw Material: Max. 10%
- Finished Product Shape: Cylindrical
- Process Cost/MT [Approx] :Rs: 500/- [In India]
Specifications of applicable Raw Materials (any agro waste) & Other infrastructure
- Size of Raw Material : Max. 20 mm.
If bigger size of Raw Material, cutter required.
- Moisture contain: Max. 10%.
If Moisture contain is higher than Dryer is required.
Land Area in Feet (Machine Room): 20 X 30' X 14' (Width X Length X Height) Electricity/Power
Minimum Total Land require for whole plant [Machine area/Raw materials area] 5000 Mtr [Approx] Electricity/Power
- Required Power Connection: 90 hp.(III phase)
- Practical used Amp. Load): 80-90. Amp(Approx)
- Power Consumption : 35-40 Unit/Tone.
Labor
- Trained & Skilled operator : One/Shift
- Unskilled labor: Six/shift
Total weight of complete unit : 8500 Kg. (Approx)
Require one 20 feet container
Total Size of complete unit : 25' X 30' x 14' (Length X Width X Height) (Approx)
Production Data with Various Raw Materials (Approx)
- Sugarcane Baggass/ Soybean Husk : 800-900 Kg./hr.
- Groundnut shell : 1200-1500 Kg./hr.
- Saw Dust/Wood Chips/coconut Shell: 1200-1600 Kg./hr.
Main Unit Consisting:
- Briquetting Press Machine consisting
- 75 HP Electric Motor with nylon belt
- Complete lubrication system, Filter & 2 HP Electric Motor.

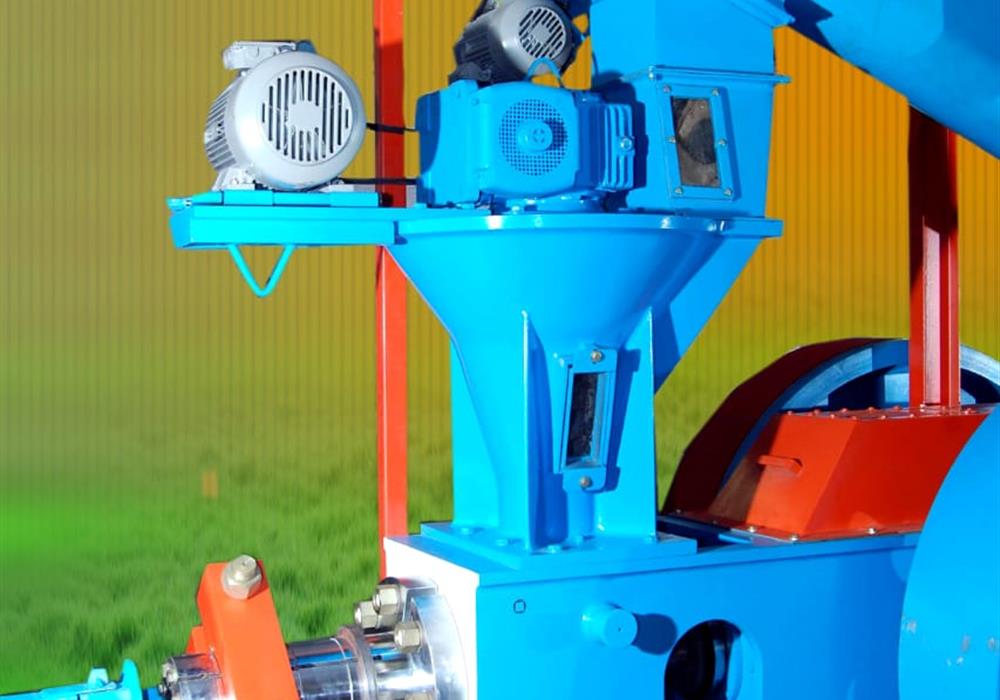

- Feeding cyclone, Gearbox, 10 HP Electric Motor

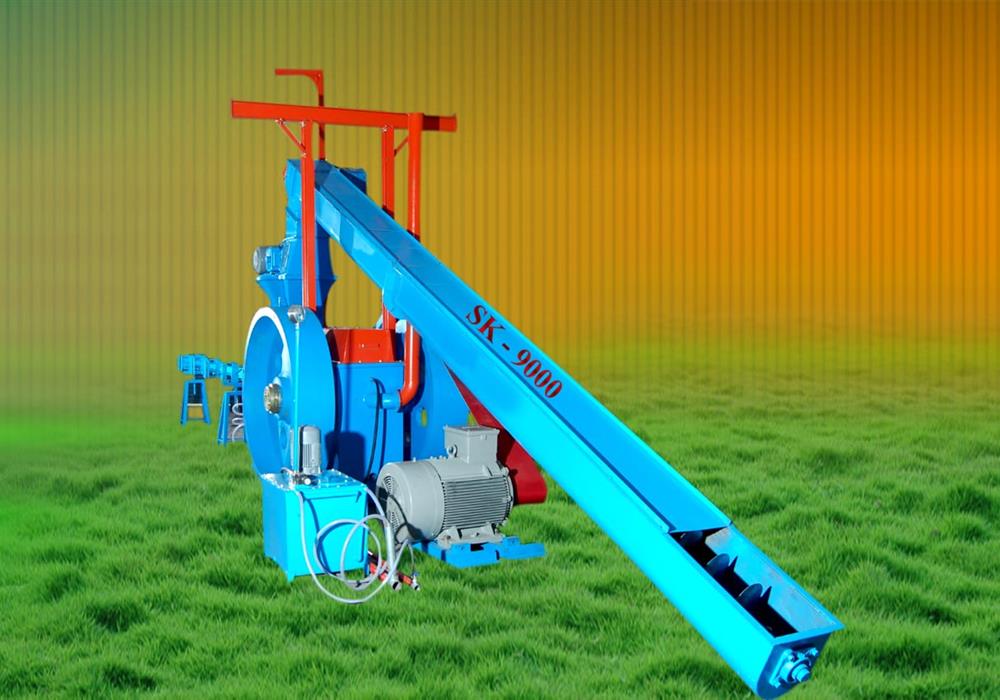

- Screw Conveyor-20 feet long with Gearbox 3 HP Motor
- Cooling lines 30 feet with stand.
- Complete operating panel board.
- Foundation bolts & channel for main Motor.
All above Elec. Motors with 1440 RPM operating AC Power supply shall be 415V, 3Phase, 50Hz.
THE FEATURES OF SK 9000
- Maximum production capacity.
- Heavy structure with standard design.
- Acceptability up to 20 mm size of raw material. (No need of powdery form)
- Easy operating system.
- High-density of finished product with 90 mm diameter.
- Lowest production cost per MT due to state of art technology.
- Lower electric consumption due to direct feeding without hammer mill.
- Lower maintenance cost.
- Lower management cost due to High production capacity.
- No loss of production & air pollution due to direct feeding system.
